To understand the theorem, you should first try The Diamond 16 Puzzle.

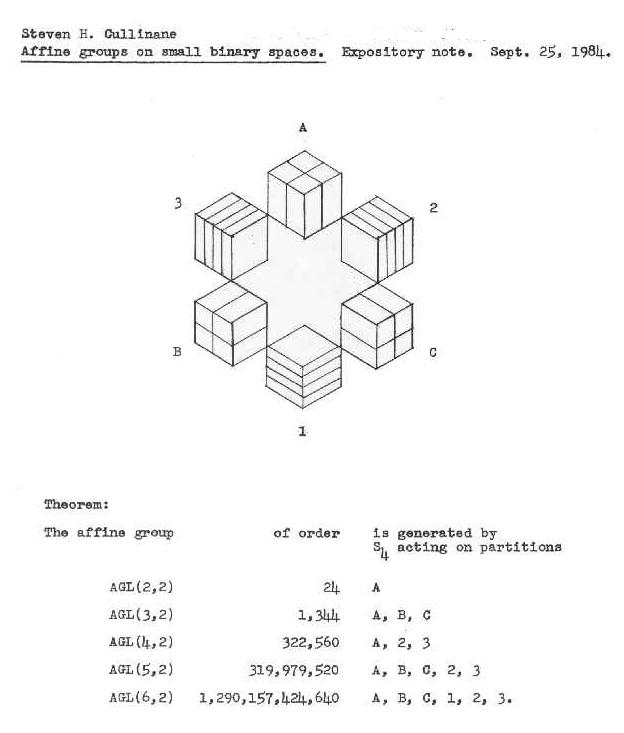

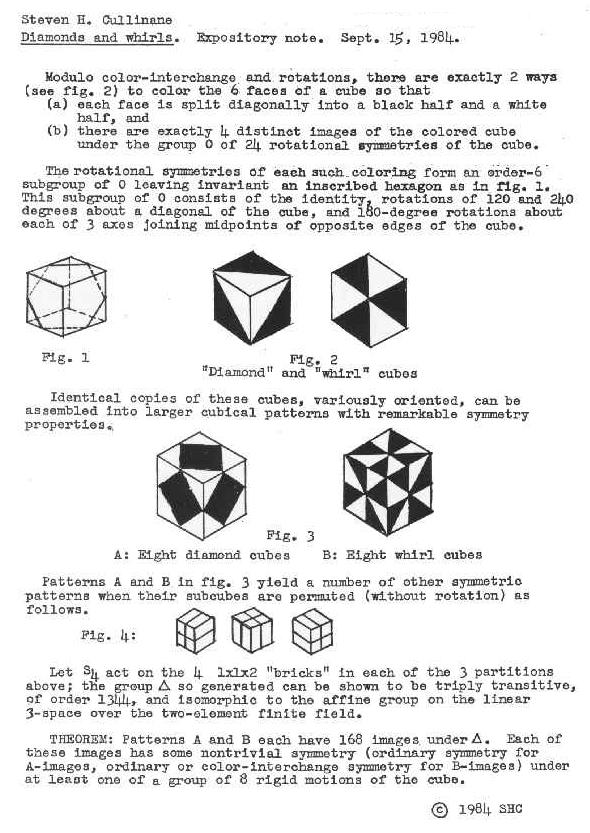

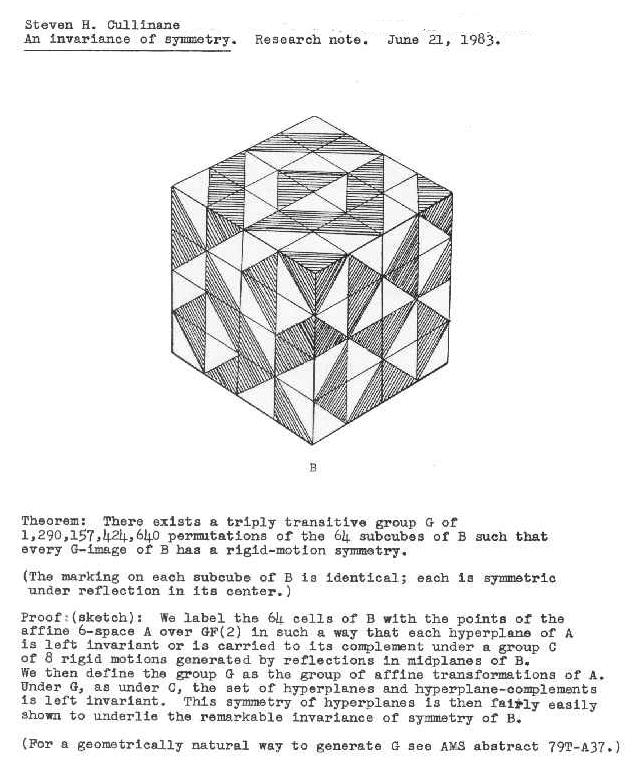

Then scroll down on this web page to see presentations of the 4x4, 2x2, 2x2x2, and 4x4x4 cases of the theorem. After these, scroll down further to view a diagram that summarizes the group actions in the above cases, and, finally, a statement of the theorem that includes all the cases previously discussed.
We regard
the fourdiamond figure D at left as a 4x4 array of twocolor
diagonallydivided square tiles.
Let G be the group of 322,560 permutations of these 16 tiles generated by arbitrarily mixing random permutations of rows and of columns with random permutations of the four 2x2 quadrants. THEOREM: Every Gimage of D (as at right, below)

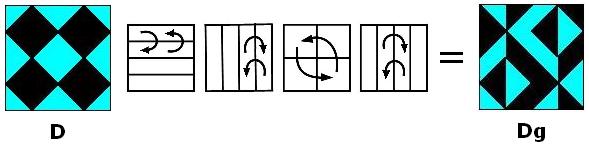

has some ordinary or colorinterchange symmetry. Example:
where g, a permutation in G, is a product of two disjoint
7cycles. Note that Dg has rotational colorinterchange symmetry
like that of the famed yinyang symbol. Remarks: G is isomorphic to the affine
group A on the linear 4space over GF(2). The 35 structures of the
840 = 35 x 24 Gimages of D are
isomorphic to the 35 lines
in the 3dimensional projective space over GF(2).

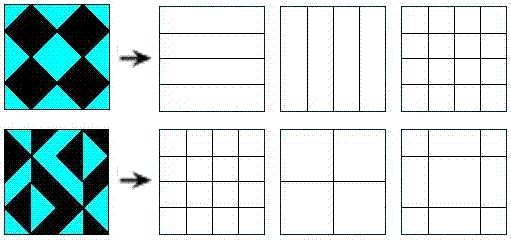

This can be seen by viewing the 35 structures as threesets of line diagrams, based on the three partitions of the fourset of square twocolor tiles into two twosets, and indicating the locations of these twosets of tiles within the 4x4 patterns. The lines of the line diagrams may be added in a binary fashion (i.e., 1+1=0). Each threeset of line diagrams sums to zero  i.e., each diagram in a threeset is the binary sum of the other two diagrams in the set. Thus, the 35 threesets of line diagrams correspond to the 35 threepoint lines of the finite projective 3space PG(3,2). For example, here are the line diagrams for the figures above: Shown below are the 15 possible line diagrams
The symmetry of the line diagrams accounts for the
symmetry of the twocolor
patterns. (A proof shows that a 2nx2n twocolor triangular
halfsquares pattern with such line diagrams must have a 2x2 center with a
symmetry, and that this symmetry must be shared by the entire
pattern.) Among the 35 structures of the 840 4x4 arrays of tiles, orthogonality (in the sense of Latinsquare orthogonality) corresponds to skewness of lines in the finite projective space PG(3,2). This was stated by the author in a 1978 note. (The note apparently had little effect. A quartercentury later, P. Govaerts, D. Jungnickel, L. Storme, and J. A. Thas wrote that skew (i.e., nonintersecting) lines in a projective space seem "at first sight not at all related" to orthogonal Latin squares.) We can define sums and products so that the Gimages of D generate an ideal (1024 patterns characterized by all horizontal or vertical "cuts" being uninterrupted) of a ring of 4096 symmetric patterns. There is an infinite family of such "diamond" rings, isomorphic to rings of matrices over GF(4). The proof uses a decomposition technique for functions into a finite field that might be of more general use. The underlying geometry of the 4x4 patterns is closely related to the Miracle Octad Generator (pdf) of R. T. Curtis used in the construction of the Steiner system S(5,8,24) and hence is also related to the Leech lattice, which, as Walter Feit has remarked, "is a blown up version of S(5,8,24)." For a movable JavaScript version of these 4x4 patterns, see The Diamond 16 Puzzle.

The 2x2

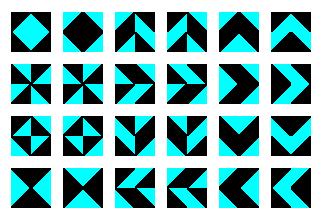

case In the 2x2 case, D is a onediamond figure (top left, below) and G is a group of 24 permutations generated by random permutations of the four 1x1 quadrants. Every Gimage of D (as below) has some ordinary or colorinterchange symmetry.
